Catalogue
Product catalogue
Wolter fans for car parks, tunnels, industrial and public buildings, and Himpel equipment for apartment ventilation. Every series comes with key data, versions and manufacturer documentation.
Wolter · Made in Germany
Wolter: fans for car parks, tunnels and buildings
German ventilation and smoke control equipment, from jet fans to belt-driven centrifugal fans.
Jet (impulse) fans
Ductless car-park ventilation: thrust up to 104 N, F300/F400, reversible and low-height versions.
Learn more
Axial fans
AXV/BXV with 315–1600 mm impellers — up to 200,000 m³/h, including F300/F400 smoke exhaust versions — and compact AEQ/ADQ/AER/ADR.
Learn more
Car-park extract fans
Two-stage AXG axial fans and units with two independent fans for car-park extract with redundancy.
Learn more

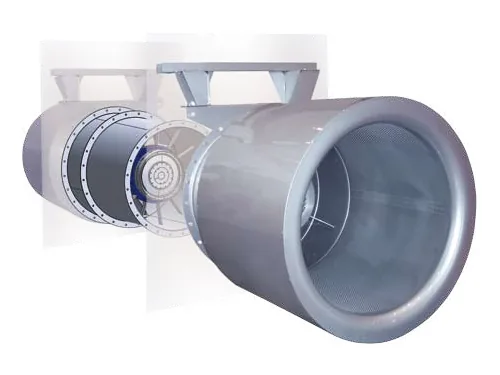

Tunnel fans
Jet fans and axial portal fans for road tunnels and metros: uni-directional and reversible, up to 400 °C / 120 min.
Learn more

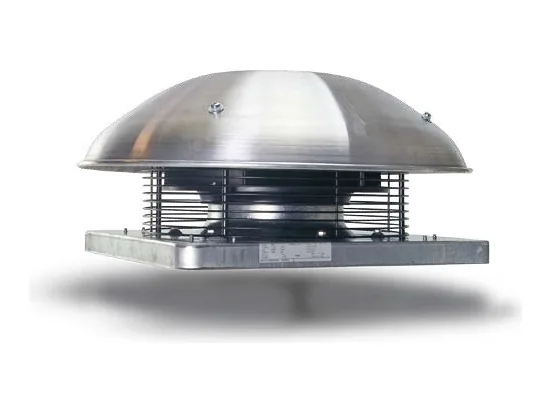

Roof fans
Centrifugal roof fans with horizontal or vertical discharge, for hot air up to 120 °C and for 400 °C smoke exhaust.
Learn more

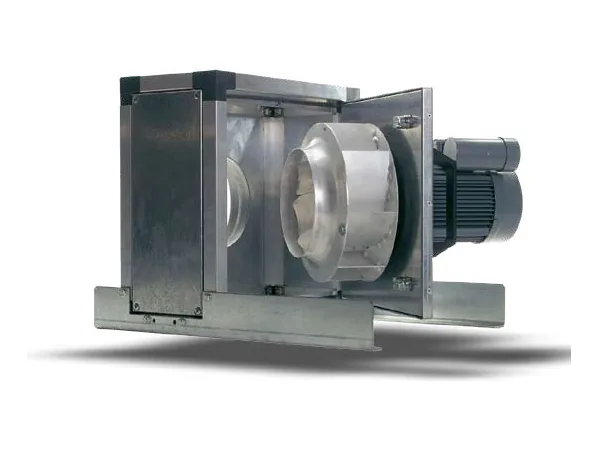

Centrifugal fans
Direct- and belt-driven centrifugal fans — up to 150,000 m³/h and 3,500 Pa — KAF/KAT kitchen boxes and plastic CHEM fans.
Learn more

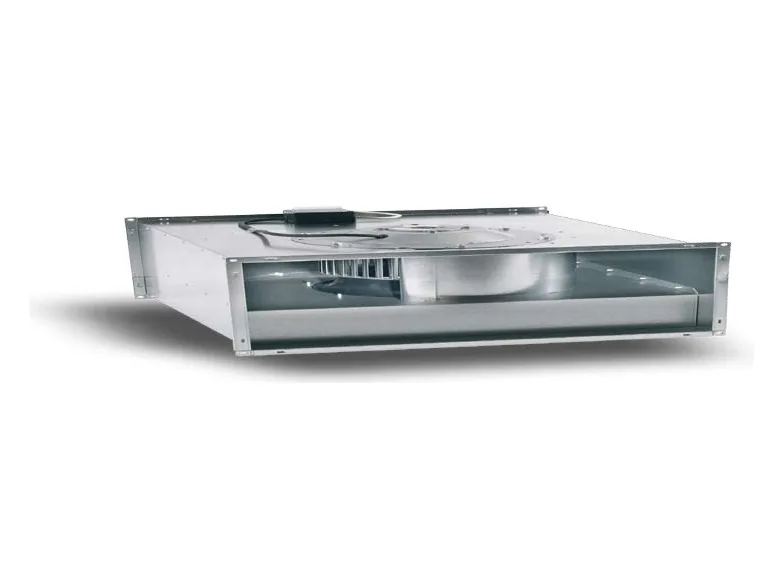

Duct fans for rectangular ducts
EKN/DKN and EK/DK fans for rectangular ducts: forward- or backward-curved impellers, insulated casings, speed control.
Learn more

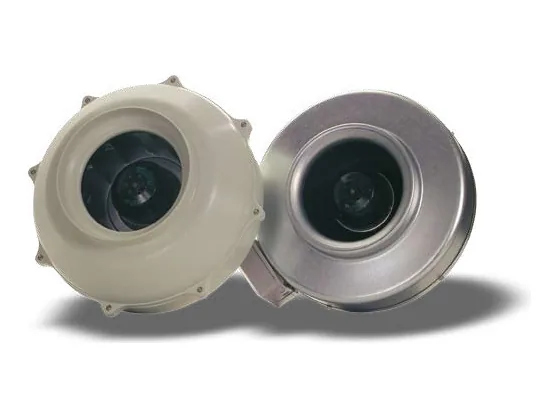

Inline tube fans for round ducts
Fans for round ducts: plastic and steel RK/RS and ERM/DRM 100–500, compact RF and RFE/RFG, sound-insulated SDB boxes.
Learn more

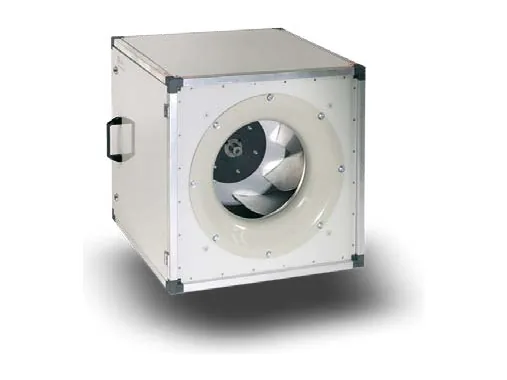

Cabinet fans
KB cabinet fans with belt or direct drive and KBPF with a plug fan, for quiet supply and extract ventilation.
Learn moreHimpel · Made in Korea
Himpel: apartment ventilation
Energy recovery ventilators with HEPA filtration, constant-airflow bathroom fans and kitchen hoods.
Himpel HueVen energy recovery ventilators
Balanced ventilation units with enthalpy heat recovery: residential 30–270 m³/h with HEPA filters and commercial up to 1,100 m³/h.
Learn moreHimpel bathroom fans and kitchen hoods
ZEROC constant-airflow fans, HueZentte all-in-one bathroom units and BioHood kitchen hoods with BLDC motors.
Learn moreCollections
Collections by task
How to choose
Selection starts with the task, not the series. An underground car park usually needs jet fans combined with axial exhaust fans rated F300 or F400. Kitchens, toilets and plant rooms use duct and roof fans. Apartments use energy recovery ventilators and constant-airflow fans.
What we need for a selection:
- purpose and operating modes (ventilation, smoke exhaust, pressurisation);
- required airflow and system resistance;
- fire-rating requirements and installation location;
- limits on noise, dimensions and power supply.
Send us this data or the drawings — a Jetfans engineer will select the series, size and version.
FAQ
Frequently asked questions
Can I buy equipment without a design service?
Yes. If the design is complete, we select equipment to the engineer’s schedule and suggest equivalent alternatives where it makes sense.
Is equipment available from stock?
Availability and lead times depend on the series and version and are stated in the quotation.
Need equipment selection or a system design?
Send us the layouts or the brief — we will prepare a selection, a calculation and a quotation.
