Ventilation equipment
Jet and axial fans for ventilation and smoke extraction, plus Wolter duct, roof and centrifugal fans and control components, and Himpel ventilation units for residential projects.
Products
Jetfans Eastern Europe · official Wolter and Himpel distributor
Wolter. Jet fan car park ventilation and smoke extraction
Made in Germany — working worldwide.
We design systems for car parks, shopping centres and residential complexes, supply Wolter equipment and verify every solution with CFD modelling.

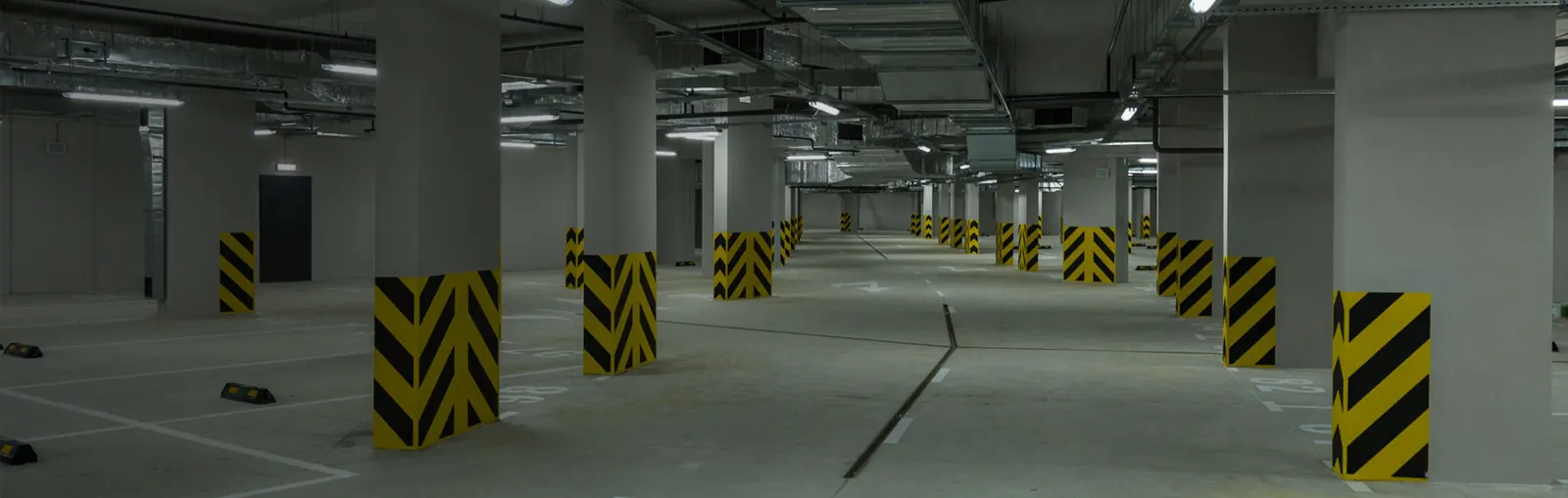

Underground car park with jet-fan ventilation
- car parks in the Wolter reference list
- 169
- smoke extraction, 120 min
- 300/400 °C
- in Germany
- 2 factories
- certified quality
- DIN EN ISO
What we do
From equipment selection to system verification
System design
Equipment selection and design of jet fan ventilation and smoke extraction systems for car parks, shopping centres, office buildings and residential complexes.
Discuss your projectCFD modelling
Computer simulation of airflow, temperature and smoke spread to check how the system will perform while it is still on paper.
Modelling examplesHow jet fan car park ventilation works
Compact jet fans replace bulky ductwork under the ceiling. Wolter supplies the complete system: fans, sensors and controls that work as one.
Supply air
Fresh air enters the car park through supply fans or open inlets.
Jet fans
Jet fans mounted under the ceiling create a directed airflow that carries air towards the extract zone.
Extract
Extract fans remove polluted air and, in a fire, take the smoke out by the shortest route.
Sensors & controls
The system adjusts its operating mode on its own and keeps smoke from spreading into neighbouring fire zones.
- No ductwork: more headroom and a brighter, more open space
- Installation, running and maintenance usually cost less than a ducted system
- Escape routes stay clear of smoke for longer
- Smoke exhaust fans tested to EN 12101-3 (classes F300 and F400)
We design
smoke exhaust systems.
We design smoke exhaust systems for buildings of different functions: covered car parks, residential buildings, shopping and office centres, and tunnels.
We calculate the airflow, select the fans and check the layout with CFD modelling before anything is installed.
Submit a requestPortfolio
Wolter projects around the world
Car parks from the Wolter Jet Fan Systems reference list: jet fan ventilation and smoke extraction in 23 countries.
The Squaire
Frankfurt am Main, Germany
117 jet fans (Wolter data)
Photo: Raimond Spekking, CC BY-SA 4.0, Wikimedia Commons
MyZeil / PalaisQuartier
Frankfurt am Main, Germany
105 jet fans (Wolter data)
Photo: Dietmar Rabich, CC BY-SA 4.0, Wikimedia Commons
European Central Bank
Frankfurt am Main, Germany
Jet-fan car park ventilation, ≈650 spaces, 2011 (Wolter data)
Photo: Dr. Thomas Liptak, CC BY-SA 4.0, Wikimedia Commons
OpernTurm
Frankfurt am Main, Germany
42 jet fans (Wolter data)
Photo: Holgerzer, CC BY-SA 3.0, Wikimedia Commons

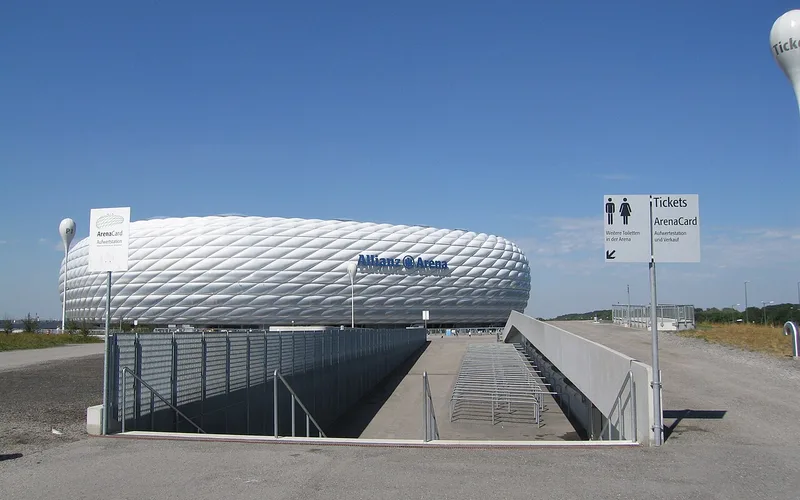

Allianz Arena
Munich, Germany
149 vertical impulse fans in the esplanade car park (Wolter data)
Photo: Muenchner2006, CC BY-SA 3.0, Wikimedia Commons

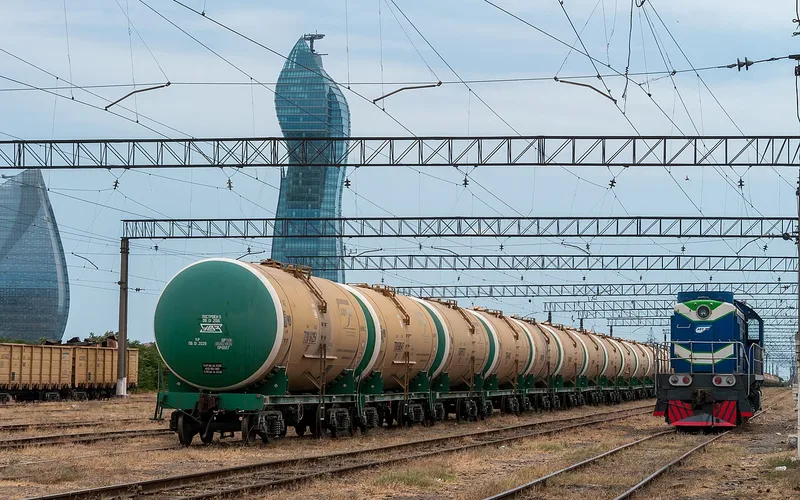

SOCAR Tower
Baku, Azerbaijan
Jet-fan car park ventilation, ≈950 spaces, 2014 (Wolter data)
Photo: Matti Blume, CC BY-SA 4.0, Wikimedia CommonsCFD modelling

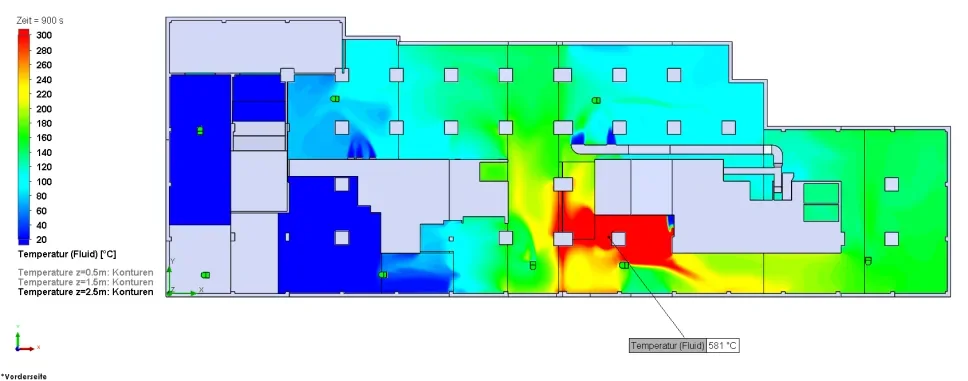

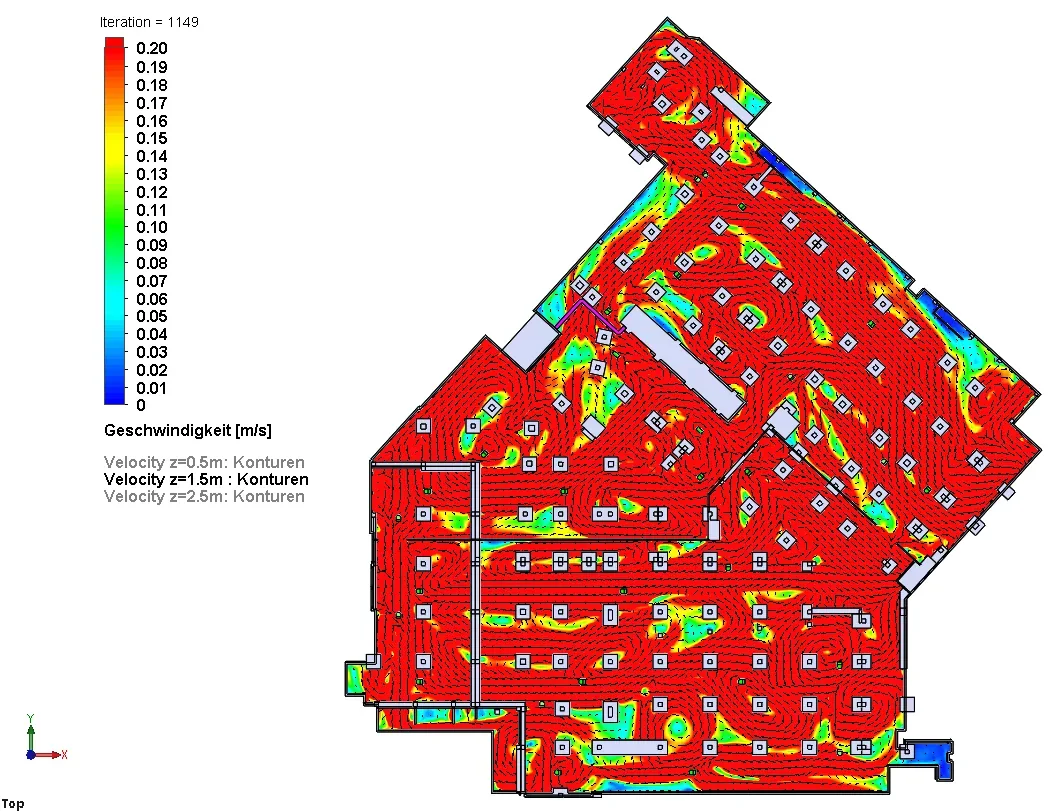

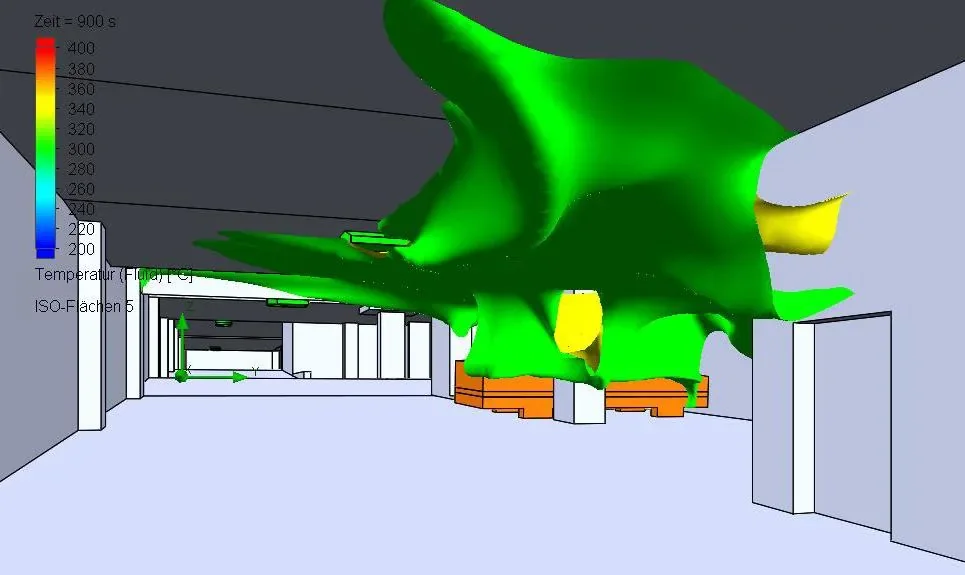

Modelling jet fan smoke extraction and ventilation systems

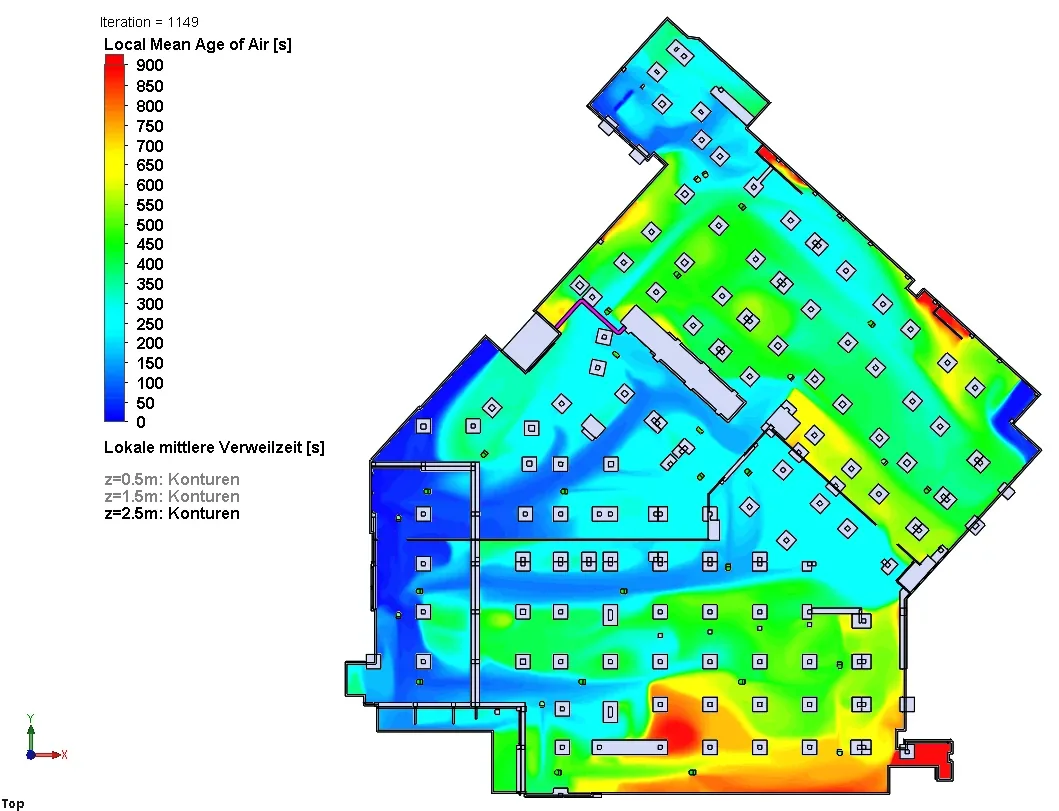

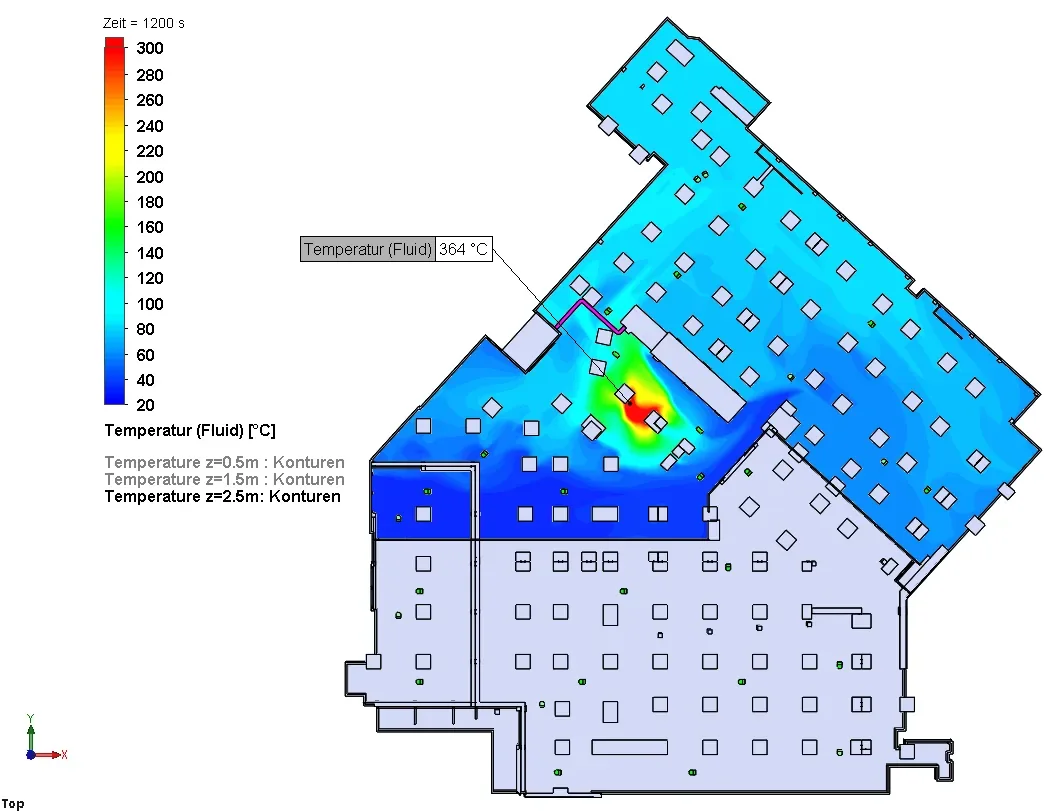

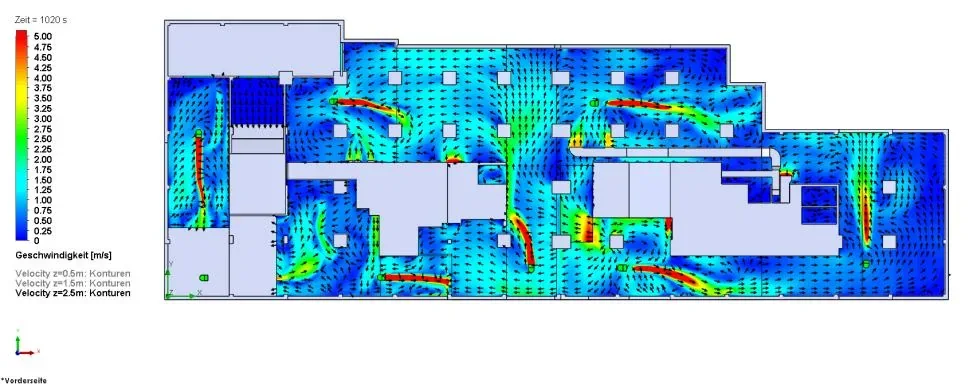

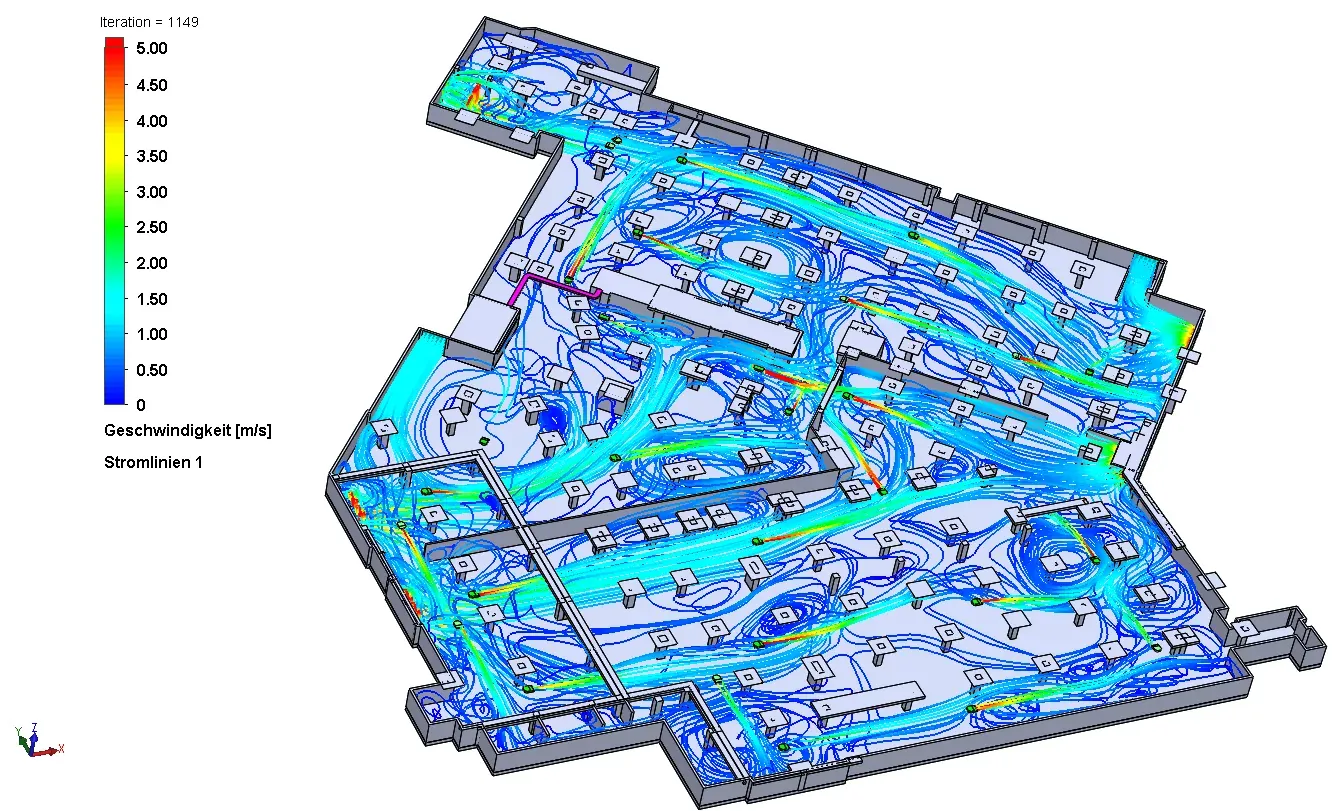

We calculate airflow velocity and direction, temperature distribution, age of air and smoke spread in the car park to confirm the system works as designed.
Infrastructure
projects.
Experience across a variety of industries. Since 1972, Wolter has supplied ventilation equipment to infrastructure projects: wind power generation, airports, underground car parks, offshore installations, road tunnels, railway, metro and mass transit (tunnels, stations and platforms), and rolling stock.
Learn more
Wolter products
Fans for ventilation and smoke extraction
Wolter products have proven themselves in virtually every area of ventilation and air conditioning for residential, commercial and public buildings.

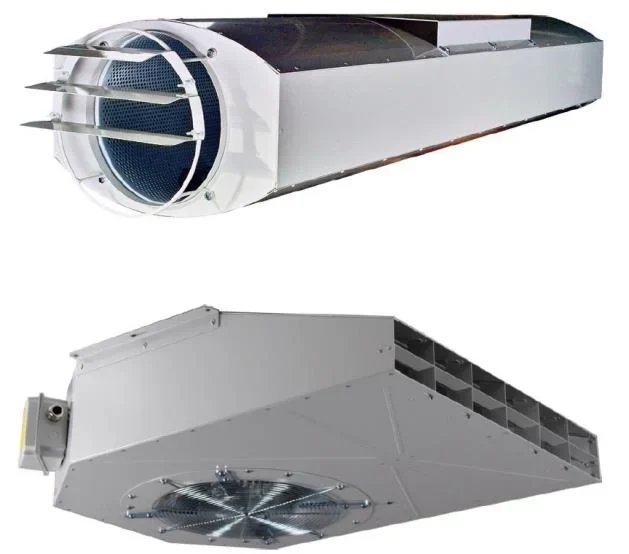

Jet fans for car parks
Ventilation and smoke extraction for underground and multi-storey car parks.
- 300 °C / 400 °C
- 120 min

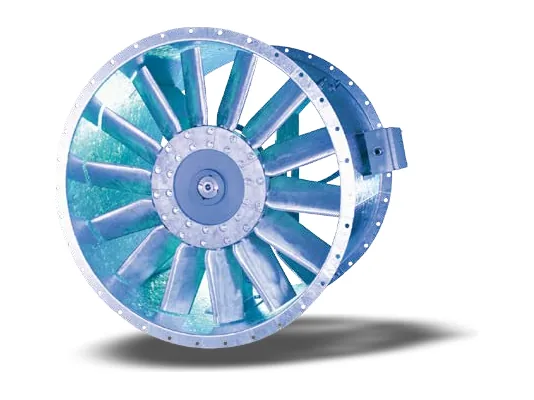

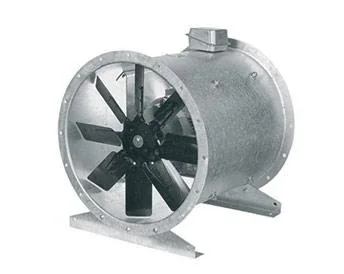

Two-speed axial fans
Ventilation and smoke extraction, with two operating modes in one unit. AXV series: Ø 315–1600 mm, up to 200,000 m³/h, up to 1,500 Pa.
- 300 °C / 400 °C
- 120 min
- EN 12101-3
Two-stage axial fans
Two counter-rotating stages with separate motors reach about 3,500 Pa. If one stage stops, the other still delivers around 65% of the airflow, so car park extraction keeps running.
Garage extract fans
Two independent fans in one duct housing, fully separated as garage regulations require, with backdraft dampers and fully variable speed.
Full range
The standard range ships from stock at short notice.
- Fans for rectangular ductsEKN, DKN, EKNS, DKNS
- Roof fansRH, RV, RVS
- Axial fans for rectangular ductsEK, DK, EKS, DKS
- Roof fans with external motorRVH
- Fans for circular ductsRFE, RF, RS, RK
- Centrifugal fansERSE, ERSD, DRSE, DRSD
- Sound-insulated circular duct fansSDB
- Centrifugal fans with standard motorTNF, HNF, TNQ, HNQ
- Axial fans in cylindrical housingAXV, BXV
- Chemically resistant centrifugal fanCHEM
- Two-stage axial fansAXG
- Extract boxes for polluted air (kitchens)KAF, KAT
- Axial fansAER, AEQ, ADR, ADQ
- Cabinet fansGAB, GAPF, KB, KBPF
- Garage extract fansGAES, GADS
- Control components—
For residential projects, we also supply Himpel equipment from the Republic of Korea. About Himpel
About Wolter
German engineering since 1971
When developing its products, Wolter pays close attention to aerodynamics, control technology, and the acoustic and vibration behaviour of ventilation equipment.
Wolter GmbH Maschinen- und Apparatebau KG has designed and manufactured fans since 1971. The company serves key markets worldwide through subsidiaries and distributors, and around 80% of its turnover comes from exports.
The complex interplay between these factors in every new project is always of great interest to the company’s engineers. Using the most innovative design tools, including CFD simulation, Wolter offers the optimal solution for any task.
Modern drive and control technology increases efficiency and significantly reduces a building’s operating costs. Aerodynamically optimised impellers and housings keep noise to a minimum.
- Two factories in Germany, headquarters in Malsch
- Quality management system certified to DIN EN ISO
- In-house facilities for factory testing, research and development
- First manufacturer to put carbon-fibre axial impellers into series production
Where Wolter equipment is used
- Building ventilation
- Smoke exhaust
- Car parks
- Tunnels
- Industry
- Marine
Tell us about your project
We’ll select the equipment, prepare a solution and, if needed, run a CFD simulation.
